Automatic Paper Ruling Machine With Tension Control System , From Reel To Sheet Pile
Ruling Machine Brief Introduction
This machine adopts high techniques such as microcomputer control, electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and water ink flexo printing.
It is a necessary equipment for manufacturing of exercise book, notebook, account book/etc as it is easy to operate, easy to adjust and control, because it is be of high processing efficiency.
This machine combines 5 processes: reel paper unwinding, high speed flexographic printing, cross cutting and paper collecting.
Ruling Machine Technical Parameters
| Auto flexo paper ruling machine AFP-1060 |
| max paper size | 1020mm |
| max.paper diameter | Φ1100 |
| paper thickness | 45-120g/m2 |
| sheeting length range | Max.780mm, Min.400mm (wide range to meet wide requirement) |
| max machine speed | Max.180m/min, Normal:130-160m/min (high speed ensure the quality printing) |
| cutting precision | ±0.25mm (best in the same industry) |
| paper stacking height | 1500mm (can pile the whole reel paper, save time and cost) |
| power | Total 14kw, Nomal working 5.5kw (save cost, most important for user) |
| Electricity type | 3 phases, 5 wires, 380V, 50-60HZ |
| machine weight | 6.5t (great steel material, stong & solid structure, more than 15 years' using life) |
| machine dimension | 8.5 x 3.3 x 2.2 mm (long body, make paper delivery smoothly and fast) |

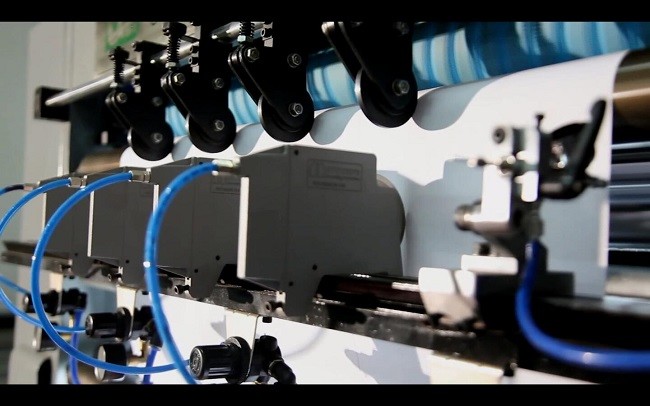

Ruling Machine Pictures
FAQ
1. Why choose us?
Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 25 years experience for exporting. Reputation and quality is what we are considering all the time.
2. Guarantee.
There is 12 month guarantee of machines. and we provide lifetime technology support on line.
3. Delivery Time.
Within 7-30 days after get the deposit. Depends on different machines
4. What our machines can do
(1) staple pin exercise book/notebook
(2) glue binding exercise book/notebook
(3) sewing binding exercise book/notebook
(4) spiral wire binding exercise book/notebook
(5) double wire binding/wire-o exercise book/notebook
(6) hard cover notebook
(7) children's board book/color book
(8) account book, etc.
